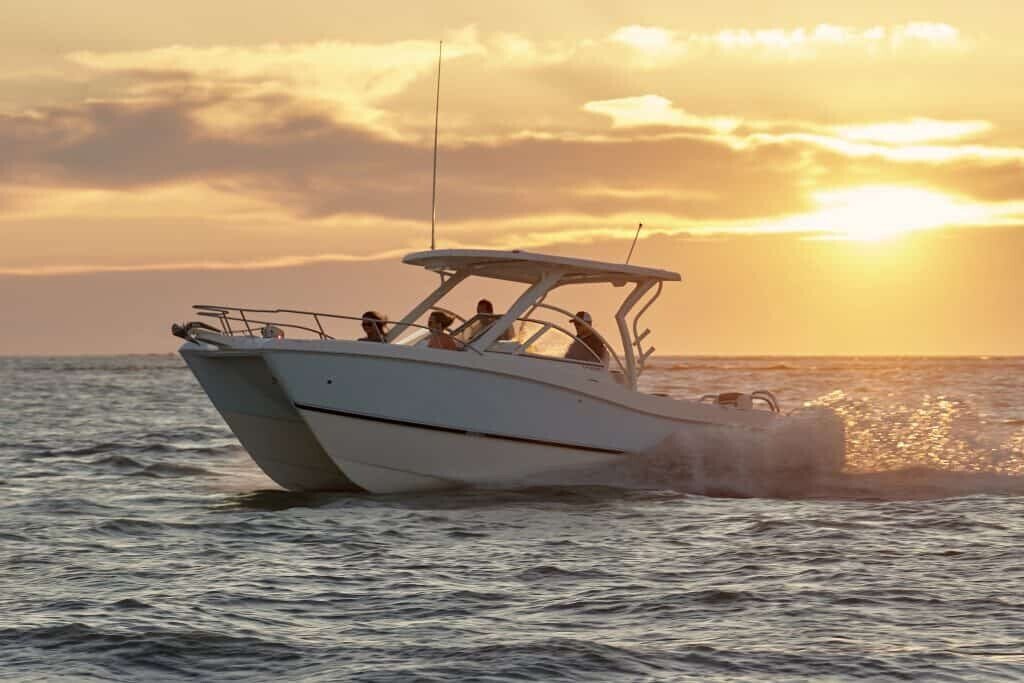

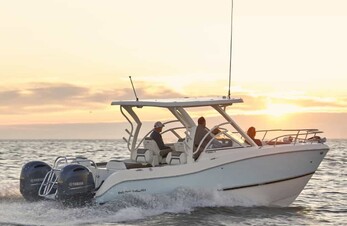

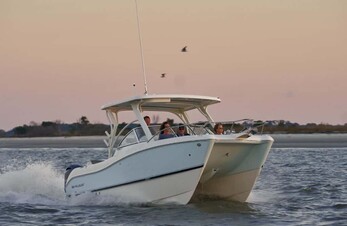

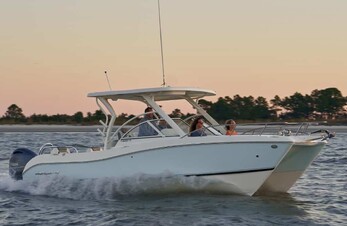

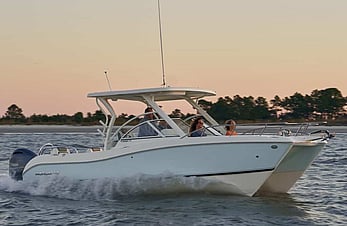

World Cat 255 Dual Console
When we designed the 255DC, we enhanced it with 25% more cockpit space than our previous model. It’s the roomiest mid-sized dual console you’ll find – with seating for 10. But, that’s not all: Whether fishing, cruising, diving, or entertaining, the 255DC features the kind of stable, smooth performance, shallow draft, and bow to stern quality you expect from a World Cat.
Standard Features
Bow
- Pro Series free-fall windlass with 300′ line, 15′ chain, 14lb anchor, and foot switches at the deck
- 316-grade stainless steel bow rail
- Bow pulpit with roller and cleat
- Port and starboard bow anchor lockers
- Forward sun lounge featuring port and starboard cushioned seats for 6 adults with wraparound coaming pad seat backs
- Stainless steel cup holders

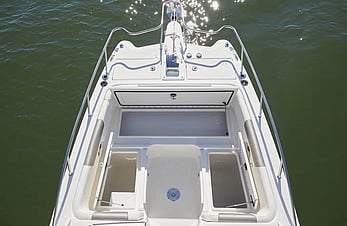

- Large, lockable dry storage and rod storage box (starboard)
- Large, lockable dry storage box (port)
- Large, lockable dry storage box (center)
- Large lockable dry storage compartment in front of helm console
- Seating capacity of 10 people

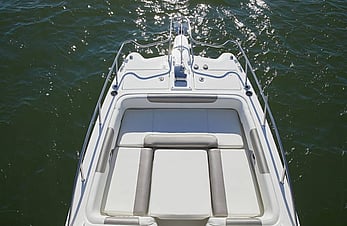

- Adjustable height bow table that converts to sun lounge with filler cushion
Helm
- Fiberglass top with aluminum frame, overhead lights, rocket launchers, and spreader lights
- Single Garmin GPSMAP 8612xsv 12" multi-touch widescreen Chartplotter / Sonar Combo, Airmar B150M transducer, dark-tinted acrylic dash, Garmin 315 VHF with 8' antenna
- 3-piece safety glass walk-through windshield with companion way handrails

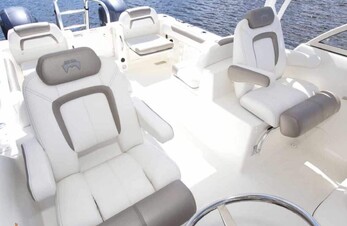

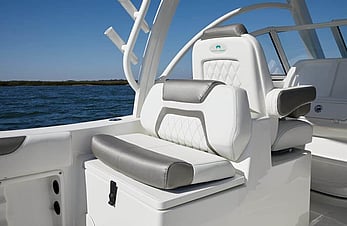

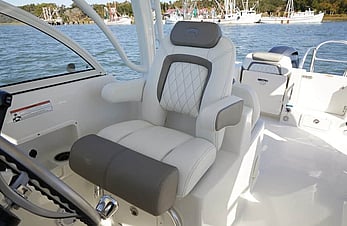

- Helm and passenger dual custom seats with flip-up bolsters and recessed stainless steel cup holders
- Ergonomic dash layout for a 12-inch screen
- Fusion® MS-UD750 marine entertainment system with 4 JL Audio speakers, remote and Bluetooth
- Power-assist steering with 15 1/2” stainless wheel
- Starboard seatbox houses 30-gallon insulated livewell with a 1100-gph magnetic drive pump and overboard drain
- Port seatbox houses 200-quart insulated fish box / cooler
- Dual ram hydraulic steering
Head

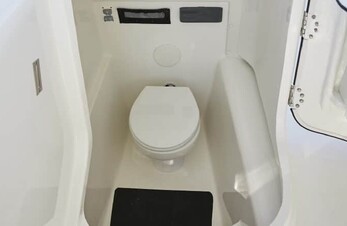

- Enclosed lockable changing area and a freshwater electric pump-out head, 10-gallon holding tank and overboard discharge (portside console)
Stern
- Walk-though transom with heavy-duty door
- Battery management system with 2 Group 27 batteries
- Integrated 2-bank battery charging system

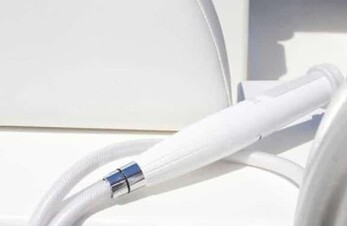

- Pull-out transom fresh water shower

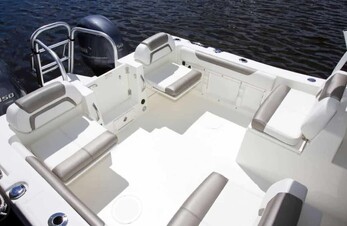

- Dual aft fold-down seats with backrest cushions
- 6 pull-up stainless steel cleats
- 4 gunwale-mounted stainless steel rod holders/cup holders
- Raw water washdown
- User-friendly On-Ramp™ swim ladder and swim platform
Power

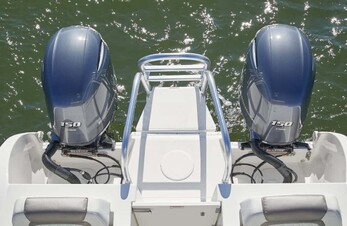

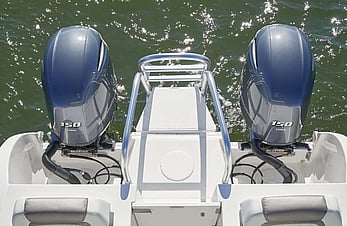

- Yamaha F150XB Package
Specifications
LOA: 26′0”
LOA: w/o pulpit 24’6″
Beam: 8’6″
Hull Draft: 12″
Freeboard Aft: 25″
Transom Height: 25″
Fuel Capacity: 186 gal (2 x 93 gal)
Max HP Rating: 300 HP (2 x 150 HP)
Approx. Dry Weight:* 6,600 lbs w/ twin 150’s
Bridge Clearance: 8’6″
Cockpit Length: 48″
Freshwater Capacity: 10 gal
Wastewater Capacity: 10 gal
Seating: 10 people
Please note photos are indicative only and may show additions not included in standard features.
Errors and omissions excepted. Packages are powered by Yamaha.
